B系列-60-3007
發(fā)布日期：2024-01-09 瀏覽次數(shù)：1246

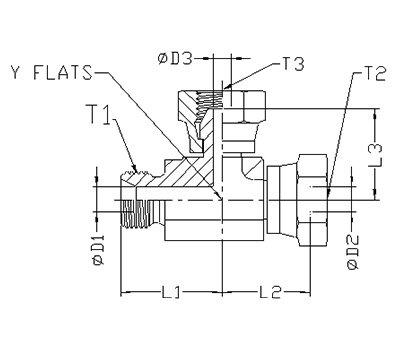

| ITEM | P/N | T1 | T2 | T3 | L1 | L2 | L3 | D1 | D2 | D3 | Y FLATS |
| 1 | 3007-04-04-04 | G1/4-19 | G1/4-19 | G1/4-19 | 26.9 | 22.0 | 22.0 | 6.0 | 4.5 | 4.5 | 17.0 |
| 2 | 3007-06-06-06 | G3/8-19 | G3/8-19 | G3/8-19 | 30.0 | 28.0 | 28.0 | 7.0 | 7.0 | 7.0 | 22.0 |
| 3 | 3007-08-08-08 | G1/2-14 | G1/2-14 | G1/2-14 | 30.0 | 31.0 | 31.0 | 9.0 | 9.0 | 9.0 | 24.0 |
| 4 | 3007-12-12-12 | G3/4-14 | G3/4-14 | G3/4-14 | 42.8 | 36.0 | 36.0 | 14.5 | 14.5 | 14.5 | 32.0 |
| 5 | 3007-16-16-16 | G1-11 | G1-11 | G1-11 | 46.0 | 38.5 | 38.5 | 20.0 | 20.0 | 20.0 | 41.0 |
